The Story

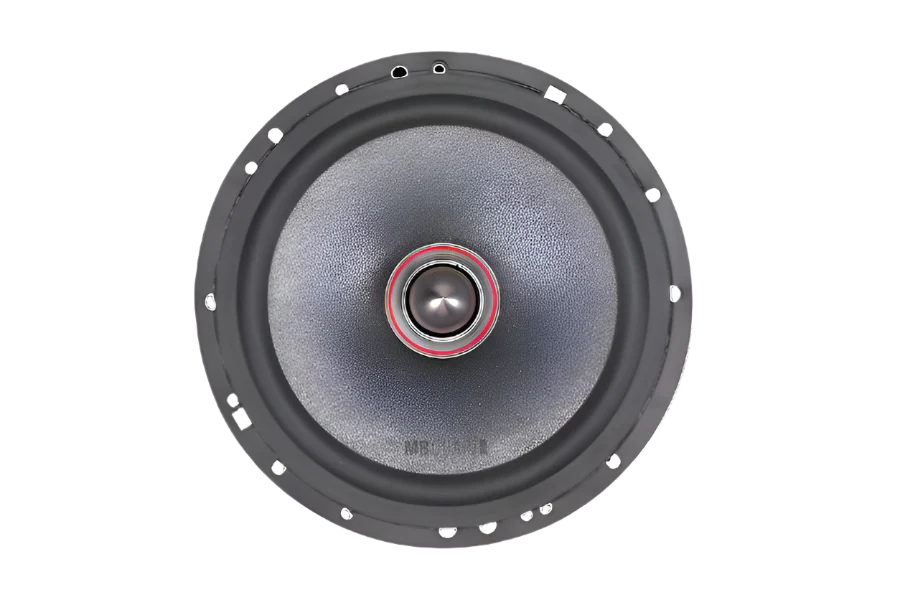

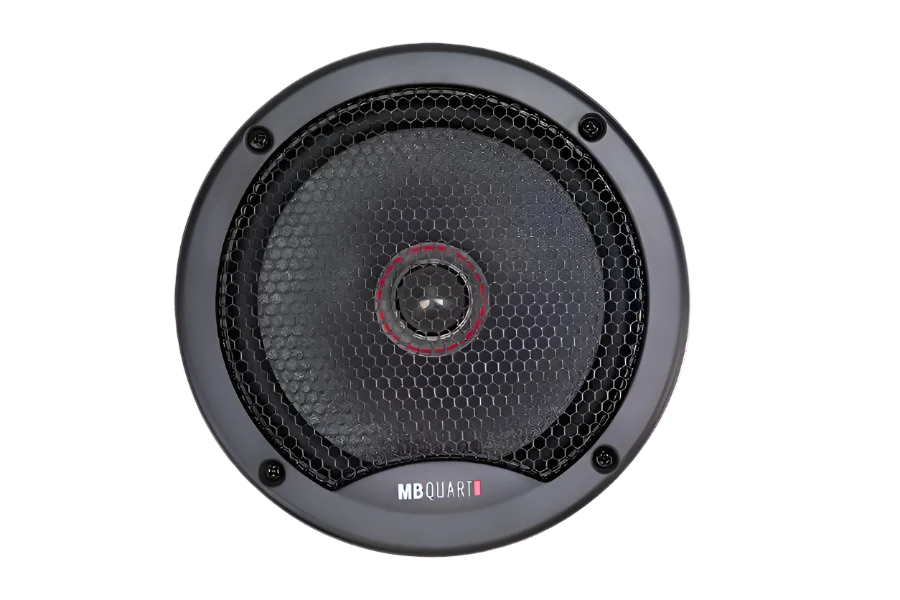

The PS1-216 is a 6.5" Premium 2-way component system with 1" Magnesium WideSphere tweeters and external Cauer-topology Butterworth crossovers. Tight-tolerance components, removable phase lens and a tunable tweeter waveguide for builds that want a proper component install.
Key Features

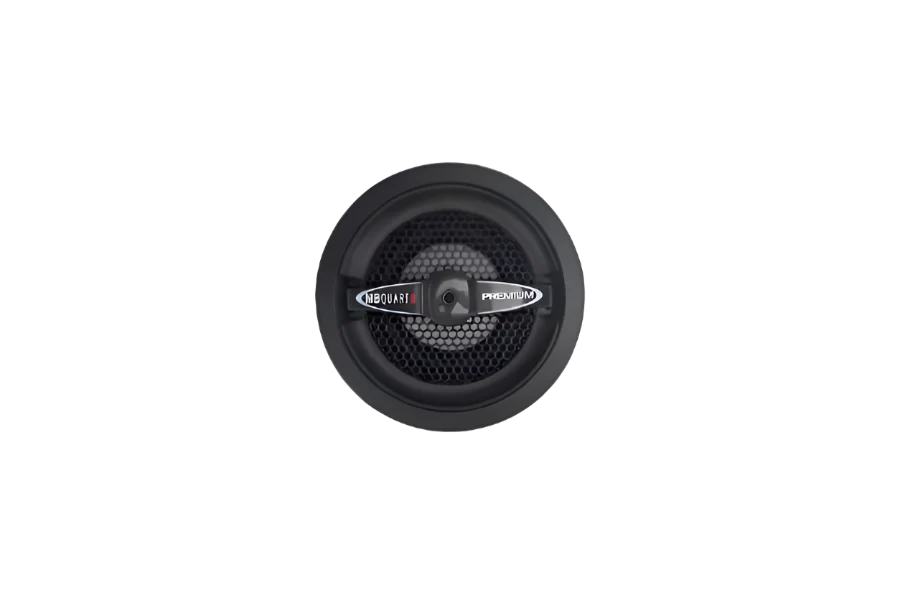

- 1" Magnesium WideSphere tweeters with aerated paper / mica cone

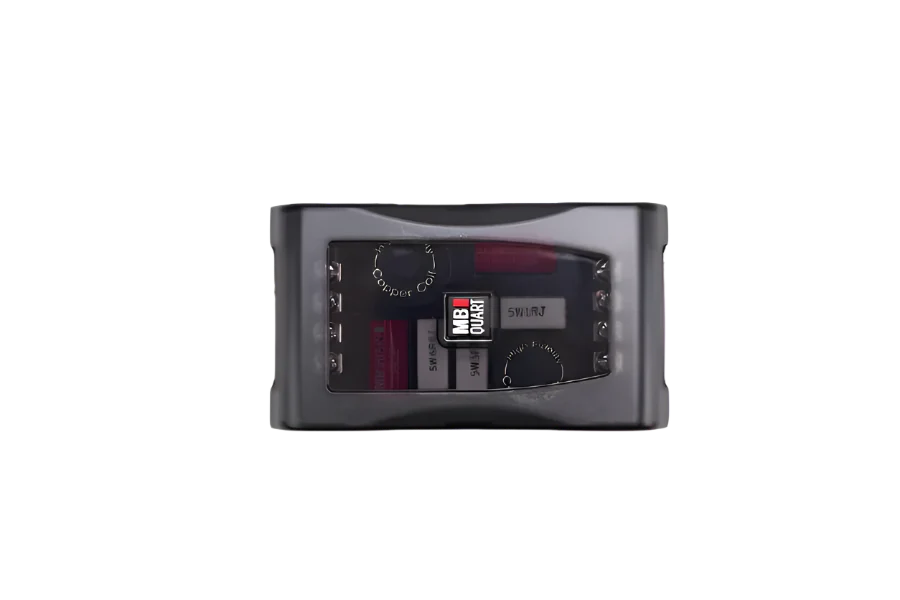

- External passive Cauer-topology Butterworth crossovers
- Tunable waveguide tweeter housing with removable phase lens

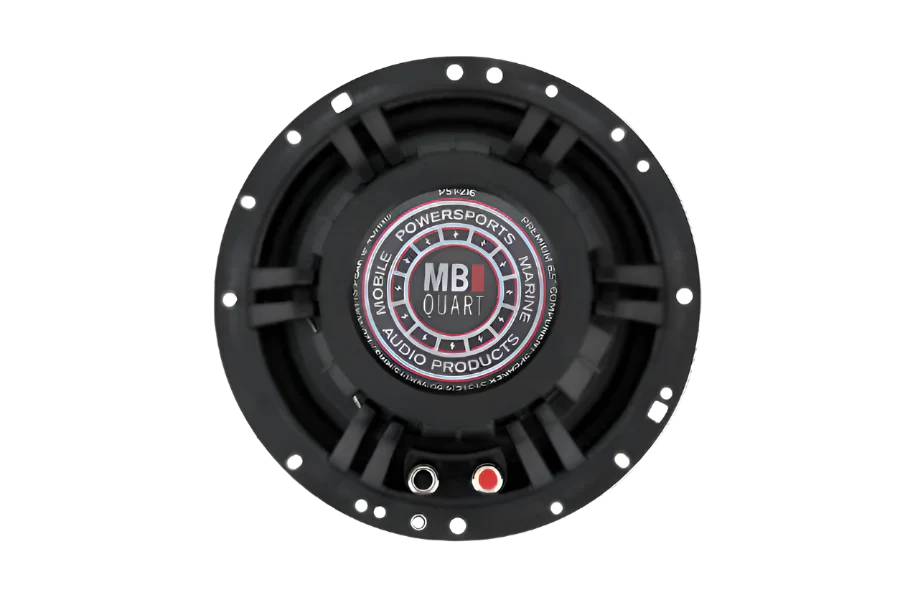

- Aerospace-grade PA66 composite frame with 30% glass fibre
- Stainless steel push-insert connectors
- Active cooling via frame venting and PTC tweeter protection
Specifications
| Specification | Value |
|---|---|
| Speaker Size | 6.5 inches |
| Configuration | 2-Way Component |
| RMS Power Handling | 60 W each / 120 W system |
| Peak Power Handling | 120 W each / 240 W system |
| Impedance | 4 ohms |
| Sensitivity | 88.9 dB |
| Frequency Response | 55 Hz, 22 kHz |
| Crossover Slope | 12 dB / octave |
| Speaker Height | 2.71 inches |
| Mounting Cutout | 5.59 inches |
| Outside Diameter | 6.57 inches |
| Grills | Included |
| Colour | Black |
| Warranty | 2 Years |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The PS1-216 is a 6.5" Premium 2-way component system with 1" Magnesium WideSphere tweeters and external Cauer-topology Butterworth crossovers. Tight-tolerance components, removable phase lens and a tunable tweeter waveguide for builds that want a proper component install.
Key Features
- 1" Magnesium WideSphere tweeters with aerated paper / mica cone
- External passive Cauer-topology Butterworth crossovers
- Tunable waveguide tweeter housing with removable phase lens
- Aerospace-grade PA66 composite frame with 30% glass fibre
- Stainless steel push-insert connectors
- Active cooling via frame venting and PTC tweeter protection
Specifications
| Specification | Value |
|---|---|
| Speaker Size | 6.5 inches |
| Configuration | 2-Way Component |
| RMS Power Handling | 60 W each / 120 W system |
| Peak Power Handling | 120 W each / 240 W system |
| Impedance | 4 ohms |
| Sensitivity | 88.9 dB |
| Frequency Response | 55 Hz, 22 kHz |
| Crossover Slope | 12 dB / octave |
| Speaker Height | 2.71 inches |
| Mounting Cutout | 5.59 inches |
| Outside Diameter | 6.57 inches |
| Grills | Included |
| Colour | Black |
| Warranty | 2 Years |
